Quick Detail:

• All aluminum housing
• fan working heat release
• AC/DC switching 24V 600W 25A single-switch LED driver
• AC input voltage: 170~250VAC
• 1600V High voltage test, full loading test and old aging test
• Constant voltage driver apply for LED light strip, led module, wash wall light, underground light, LED guardrail tube and so on
• CE, Rohs CCC approvals
• 3 Years Warranty

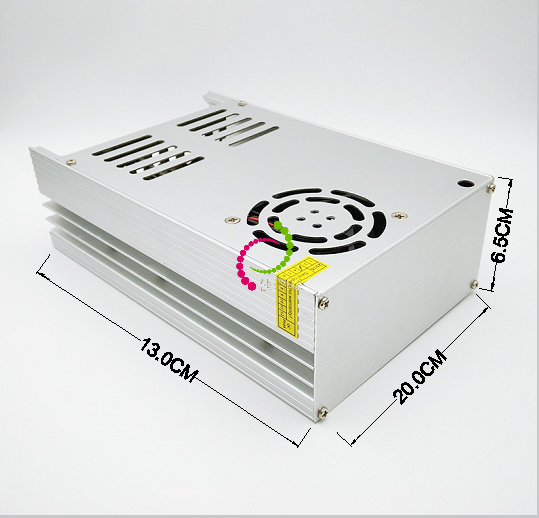

• Unit Size: 20*13*6.5CM
• Unit Weight: 1180g

Description:
Constant voltage power supply is power circuit that controls output voltage at a constant level. It always provides a constant voltage regardless of the load and is widely used as power supply for electronic circuits.

24V Indoor drivers types mainly have many models-24W, 48W, 50W, 60W, 72W,100W, 120W,150W, 180W, 200W, 240W, 300W, 360W,400W, 500W,600W,700W,800W,1000W etc. they are mainly used for LED light strip, module, line light, wall light, underground light, LED guardrail tube and so on

Specifications:

24V LED drivers related models list:

Applications:
Widely used in LED Lighting, LED display, LED strips, LED advertisement screen, LED sign, LED night light, LED lamp house, LED decoration, LED wall light, LED street light , LED wall light, LED backlight, LED tube, offices , hospital , schools , factories , plants, shopping malls, supermarkets, kitchen, fair cabinet and so on.

--Welcome to LED switch power supply, please read this instruction manual thoroughly before using the LED switching power supply--

First , Principle of product overview:

A stable DC voltage.

Second, Product features:

1. Small size, light weight;

2. Wide operating voltage range: input voltage 110-240V work properly;

3. Security, high reliability;

4. Performance: high power switching power supply have 5-10-second delay test circuit design, very well put an end to be output high-voltage switching power supply powers on an instant high current so as to protect the load (especially LED light source, reduction of mutations of light caused by the maximum output voltage );

5. Protection: short circuit, over current, overheating protection;

6. Easy installation: this product is designed to be water-proof (outdoor) and not waterproof (indoor) in two ways. Waterproof power with high strength, rust-proof metal enclosure structure design for hanging, suspension setup, reducing input and output connection cables;

7. When the load is too large, power protection, intermittent breaking exception occurs, user should reduce the load.

Third, Product usage considerations:

1. Input voltage should be within the specified voltage range (input voltage: 220VAC).

2. Prohibited to be used in the high temperature environment, power port is the thermal vents, wind 50CM range, please do not place other objects, make sure that the power should have good thermal dissipation space environment.

3. Prohibited to install power supply in the presence of flammable materials (such as wood products, flammable plastic, etc), to stay away from petrol stations or where prohibited Fireworks.

4. Accurate calculation of load power, peak use, suggested user to use power supply based on power 80% load, do not overload.

5. Power supply have built-in short circuit protection function, when output short circuit, the power will automatically enter the status. Power off after 1 minute and then power on.

6. For safety, properly grounded, the output power cable must be ≥2.5mm²

Fourth, Installation method:

1. Strictly in accordance with the position indicated by the output terminals of the power supply. It must be firm, check the output line and prohibited to be reversed (input "220VAC" main line, output "+" loaded for positive cathode, output "-" load for negative cathode).

2. Before power, check that the line voltage is compatible with the operating voltage with multimeter (voltage: 220VAC) recognized before it can be closed.

3. Power firm installed vertically (vertically in a place easy to wire the power supply, cover to cover, to be water proof)

Fifth, Usage instruction

1. Under normal conditions of use, it will be one year warranty based on date of flag, product fails during the warranty period, and test by the company are quality problems , which means free warranty.

2. The following conditions are not within the scope of warranty

(1) Not follow the specification required and damaged.

(2) Users remove internal components which caused damaged unit.

(3) Water deep into the box;

(4) The serious damage or deformation of shape;

(5) The body dates being erased or altered;

(6) Terminal block burned;

3. Maximum responsibility for defectives products is a replacement of the same model and the same number of products

Selection of switching power supply

Switching power supply in input anti-interference performance, due to the characteristics of its own circuit structure (multistage series), the general input interference such as surge voltage is difficult to pass, compared with linear power supply, the output voltage stability of this technical index has a greater advantage, its output voltage stability can reach (0.5~1) %. As power electronic integrated device, switching power module should pay attention to the following points in the selection.

3.1 Selection of output current

Because of the high efficiency of switching power supply, generally can reach more than 80%, so in the selection of output current, user should accurately measure or calculate the maximum absorption current of electrical equipment, in order to make the selected switching power supply have a high performance ratio, usually output calculation formula-------Is=KIf

Is - rated output current of switching power supply;

If - the maximum absorption current of the electrical equipment;

K-margin coefficient, generally 1.5 ~ 1.8;

3.2 grounding

Switching power supply will produce more interference than linear power supply, and electrical equipment sensitive to common-mode interference should take grounding and shielding measures. According to EMC restrictions such as ICE1000, EN61000 and FCC, switching power supply should take EMC measures, so switching power supply should be equipped with EMC filter.

3.3 Protection circuit

Switching power supply in design must have over current, overheating, short circuit and other protection functions, so its design should be preferred to choose switching power supply module with protection functions , and its protection circuit technical parameters should be matched with the working characteristics of the electrical equipment, in order to avoid the damage to the electrical equipment or switching power supply.
