IP67 Waterproof LED Driver 24V 300W 12.5A LED Module Washing Wall Light Power Supply

Quick Detail:

• Waterproof type
• AC/DC switching 24V 300W 12.5A single-switch LED driver
• AC input voltage: 100~130V or 170-250V
• 1600V High voltage test, full loading test and old aging test
• Constant voltage driver apply for outdoors LED light strip, light box
• IP67 grade
• CE, ETL approvals
• 3 Years Warranty

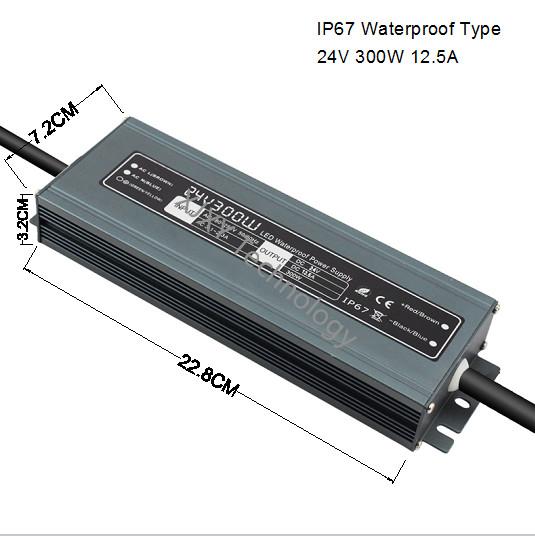

• Size: 228*72*32mm
• Weight: 950g

Description:

Waterproof power supply is used in the case of dust-proof with waterproof grade IP67, with multiple protections such as short circuit, over current, overload and so on.

We have IP67 Waterproof series two types--engineering type and ultra thin type, Widely used in LED industrial project, communications power, aerospace, industrial control systems, post communications, medical equipment and other industrial and commercial fields. All the products adopt PWM high-frequency pulse width modulation technology, mature standardized production, strict 100% load-carrying aging, high and low voltage impact experiments and complete test records for development & production of LED driver through strictly quality control system and highly responsible attitude, thus have a good quality feedback during application.

Engineerinbg type waterproof led drivers mainly include 12V and 24V series with 20W, 30W, 40W,50W, 60W,80W,100W,120W,150W, 200W,

250W, 300W,400W, 450W, 500W, 550W, 600W.

Mainly for LED spotlights, LED light strips, LED street lamps, LED light box, LED module light , LED signboard light, LED bulbs, LED buried lights, LED sky lights, LED flat lights, LED wall washing lights and other LED lamps to provide driving capacity. The most important feature is that it is waterproof and can be used outdoors without fear of rain, fog, direct sunlight and other harsh environments.

Specifications:

Notices:

1. Input voltage should be within the specified voltage range (for examples: input voltage 220VAC).

2. Prohibited to be used in the high temperature environment, power port is the thermal vents, wind 50CM range, please do not place other objects, make sure that the power should have good thermal dissipation space environment.

3. Prohibited to install power supply in the presence of flammable materials (such as wood products, flammable plastic, etc), to stay away from petrol stations or where prohibited Fireworks.

4. Accurate calculation of load power, peak use, suggested user to use power supply based on power 80% load, do not overload.

5. Power supply have built-in short circuit protection function, when output short circuit, the power will automatically enter the status. Power off after 1 minute and then power on.

6. For safety, properly grounded, the output power cable must be ≥2.5mm²

7. Strictly in accordance with the position indicated by the output terminals of the power supply. It must be firm, check the output line and prohibited to be reversed (input "220VAC" main line, output "+" loaded for positive cathode, output "-" load for negative cathode).

8. Before power, check that the line voltage is compatible with the operating voltage with multimeter (voltage: 220VAC) recognized before it can be closed.

9. Power firm installed vertically (vertically in a place easy to wire the power supply, cover to cover, to be water proof)

Engineering type IP67 LED drivers 12V/24V related models list:

Applications:

Mainly for LED spotlights, LED light strips, LED street lamps, LED light box, LED module light , LED signboard light, LED bulbs, LED buried lights, LED sky lights, LED flat lights, LED wall washing lights and other LED lamps to provide driving capacity. The most important feature is that it is waterproof and can be used outdoors without fear of rain, fog, direct sunlight and other harsh environments.

FAQ

1. How many kinds of led drivers you produce?

A: There are many kinds of led drivers: indoor type, rain proof type, waterproof type, ultra thin type, high power type.

2. Do you have CE, ETL approval?

A: Most of products have CE approval, some products have ETL approval.

3. Can I place a sample order?

A: Yes, sample order is available after full test and before delivery. If big quantity, it maybe need 12-18 working days.

4. What about the lead time?

A: 3-5 days for Sample, 8-12 working days for mass production.

5. Which tests do you carry out in your factory?

A: We usually do overload test, 1600V high voltage test and 100% old age test.

6. What is MOQ for led driver?

A: MOQ usually is 100-200pcs except sample order.

7. How do you ship the goods and how long does it take to arrive?

A: We ship by sea, by railway or by air. If samples, always by express such as FEDEX or DHL etc. It all depends.

About constant voltage (CV) and constant current (CC) power supply

Power supply is a device that provides electric energy for the load. The power circuit is what converts input electric energy into the desired form and outputs what called "power circuit". Power circuit can be roughly divided "constant voltage power supply" and "constant current power supply".

Waterproof power supply is used in the case of dust-proof with waterproof grade IP67, with multiple protections such as short circuit, over current, overload and so on.

----CV Features-----

1. High reliability.

especially like the drive power of LED street lamps, installed in the air, maintenance is not convenient, maintenance costs are also large

2. High efficiency.

LED is energy saving products, driving power efficiency to be high. It is particularly important for the structure of the power supply installed in the lamps and lanterns. Because the luminous efficiency of leds decreases as the LED temperature increases, the heat dissipation of leds is very important. The efficiency of the power supply is high, its consumption power is small, and the heat emitted in the lamps and lanterns is small, which reduces the temperature rise of the lamps and lanterns. It is beneficial to delay the light decay of LED.

3. High power factor.

The power factor is the load requirement of the grid. General 70 watts below the use of electrical appliances, no mandatory indicators. Although the power factor of a single appliance with small power is low, it has little impact on the power grid, but at night when everyone lights up, the same load is too concentrated, it will produce more serious pollution to the power grid. For 30 watts ~40 watts LED drive power supply, it is said that in the near future, there may be a certain index requirement on the power factor.

for a period of time. Multichannel constant-current output power supply is better in cost and performance. It may be the mainstream direction.

4. Surge protection.

LED anti-surge ability is relatively poor, especially anti-reverse voltage ability. It is also important to strengthen this protection. Some LED lights are installed outdoors, such as LED street lamps. Due to grid load throwing and lightning sensing, various surges can enter from the grid system, some of which can cause LED damage. Therefore, the LED driving power supply should have the ability to suppress the intrusion of the surge and protect the LED from being damaged.

5. Protection function.

In addition to the conventional protection function of power supply, it is best to add LED temperature negative feedback in the constant current output to prevent LED temperature from being too high.

6. To meet the requirements of safety regulations and electromagnetic compatibility.

With the increasingly wide application of LED, the performance of LED drive power will be more and more suitable for LED requirements.
