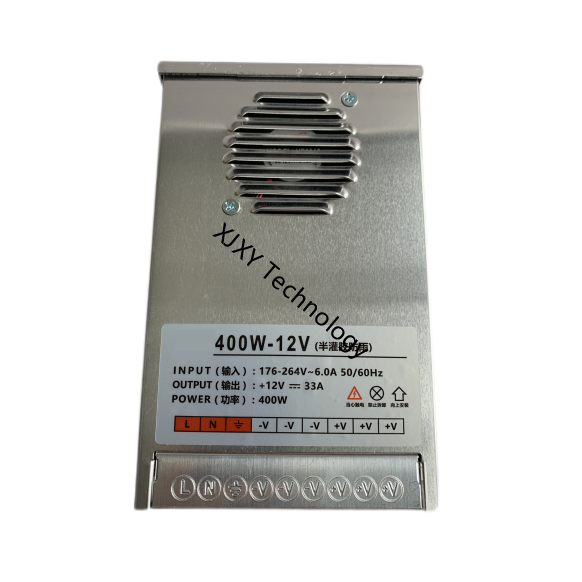

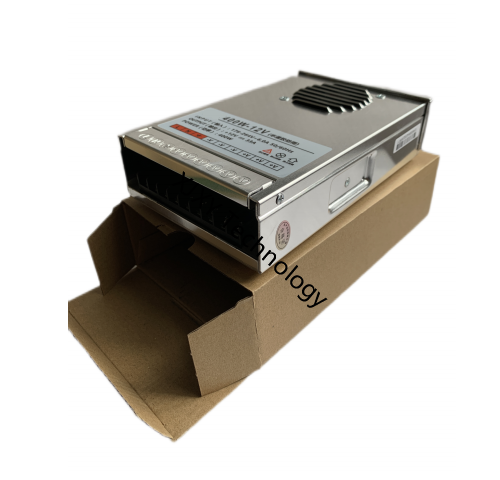

Steel Rainproof LED Driver 12V 400W IP54 Strips Light Box Module LED Transformer
Quick Detail:

• Rainproof type steel housing shell with fan hot release
• AC/DC switching 12V 400W 33.3A single-switch LED driver
• AC input voltage: 220V
• 1600V High voltage test, full loading test and old aging test
• Constant voltage driver apply for LED light strip, light box, LED module, signboard light, line light, wall wash light, underground light, protective tube and so on
• IP54 grade
• 3 Years Warranty
• Unit Size: 18.4*11.8*5.0CM
• Unit Weight:

Specifications:

Notices:
1. Input voltage should be within the specified voltage range (for examples: input voltage 220VAC).
2. Prohibited to be used in the high temperature environment, power port is the thermal vents, wind 50CM range, please do not place other objects, make sure that the power should have good thermal dissipation space environment.

Rainproof IP54 LED drivers related models list:

Applications:
Widely used in LED Lighting, LED display, LED strips, LED advertisement screen, LED sign, LED night light, LED lamp house, LED decoration, LED wall light, LED street light , LED wall light, LED backlight, LED tube, offices , hospital , schools , factories , plants, shopping malls, supermarkets, kitchen, fair cabinet and so on.

------LED Switch Power Supply Instruction-----------

Welcome to LED switch power supply, please read this instruction manual thoroughly before using the LED switching power supply:

Product usage considerations:

1. Input voltage should be within the specified voltage range (input voltage: 220VAC).

2. Prohibited to be used in the high temperature environment, power port is the thermal vents, wind 50CM range, please do not place other objects, make sure that the power should have good thermal dissipation space environment.

3. Prohibited to install power supply in the presence of flammable materials (such as wood products, flammable plastic, etc), to stay away from petrol stations or where prohibited Fireworks.

4. Accurate calculation of load power, peak use, suggested user to use power supply based on power 80% load, do not overload.

5. Power supply have built-in short circuit protection function, when output short circuit, the power will automatically enter the status. Power off after 1 minute and then power on.

6. For safety, properly grounded, the output power cable must be ≥2.5mm²

Installation method:

1. Strictly in accordance with the position indicated by the output terminals of the power supply. It must be firm, check the output line and prohibited to be reversed (input "220VAC" main line, output "+" loaded for positive cathode, output "-" load for negative cathode).

2. Before power, check that the line voltage is compatible with the operating voltage with multimeter (voltage: 220VAC) recognized before it can be closed.

3. Power firm installed vertically (vertically in a place easy to wire the power supply, cover to cover, to be water proof)

Usage instruction

1. Under normal conditions of use, it will be one year warranty based on date of flag, product fails during the warranty period, and test by the company are quality problems , which means free warranty.

2. The following conditions are not within the scope of warranty

(1) Not follow the specification required and damaged.

(2) Users remove internal components which caused damaged unit.

(3) Water deep into the box;

(4) The serious damage or deformation of shape;

(5) The body dates being erased or altered;

(6) Terminal block burned;

3. Maximum responsibility for defectives products is a replacement of the same model and the same number of products
